Milli-Ohm meter/Micro-Ohm meters
| Name | Description | Category | ||
|---|---|---|---|---|
|
LUT0188-MO-2013 HIGH PRECISION MILLIOHM METER | * Professional bench type milliohm meter.* 20 m /200 m /2 /20 /200 /2 K /20 K ohm.* 20,000 counts, Jumbo LCD with back light.* Hi / Lo warning, 4 wires terminals, Kelvin clips is included, 0.001 milliohm resolution.* Judgement output : Low/Good/High port, used for the automatic machine to select the components (good or no good).* Power : AC 110V or AC 220 V/AC230 V. | Milli-Ohm meter/Micro-Ohm meters |
|
|
PRO0037-710 Micro-Ohmmeter with USB Interface | Maximum test current of 10A (60 mΩ) Best resolution of 1μΩ, (accuracy 0.05%) Measures resistive and inductive materials Selection of 6 Current ranges - Manual or Auto Programmable Hi-Lo alarm with memory of 20 readings Auto-display of: • Hi (readings higher than Hi-Limit)• Lo (readings lower than Lo-Limit)• Pass (readings between Hi-Limit and Lo-Limit) Memory of 3000 sets of data Measure cable length in metric and imperial units Cummunicate with PC via USB or RS232C Rechargeable batteries and AC Adapto | Milli-Ohm meter/Micro-Ohm meters |
|
|
TEN150-DIGITAL BASIC HANDHELD MILLIOHM METER | 3-1/2 digit LCD display with maximum reading of 2000. Low battery indication. Zero adjustment: External zero adjustment control. Very low impedance measurement, four-wire type, one pair insulated clip. Wide measurement range 1 milliohm to 20k Ohm in six switchable steps. Fuse protection: 2 Amp/250Volt (5mm x 20mm), fast minimum interrupt ratings 1500A. Function keys: D-H switch lockup readings for LCD display. Dimensions: 160mm (L) x 100mm (W) x 52mm (D) Weight: 700g approx. | Milli-Ohm meter/Micro-Ohm meters |
|
|

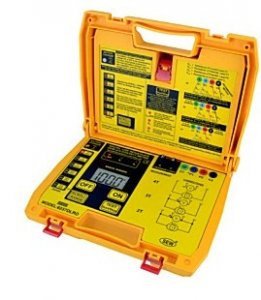

SEW0029-KKINSTRUMENTS DLRO MICRO-OHM TESTER (REPLACED MEGGER DLRO 10)
|
FEATURES ● Microprocessor-controlled.● Measure down to 1μΩ.● 6 ranges from 2.000mΩ to 200.0Ω.● Maximum resolution of 1μΩ.● Three test currents with over-temperature protection.● Four terminal measurement.● Protection against inadvertent connection to over- voltage. (crow bars for current and voltage)● Clear & large LCD.● Potential lead resistance and current lead resistance checks.● "Full-featured” EnerSave™ Inside.● EnerSave™ Auto-hold.● EnerSave™ Auto-off.● Rechargeable battery operated● Robust & compact.● Indicators show if reading may be invalid (RP, RC, and temperature).● "O-Ring” sealed case. SPECIFICATIONS Low resistance ranges / resolution 0-2.000mΩ / 1μΩ 0-20.00mΩ / 10μΩ 0-200.0mΩ / 100μΩ 0-2.000Ω / 1mΩ 0-20.00Ω / 10mΩ 0-200.0Ω / 100mΩ Accuracy 0-2.000mΩ : ±(5%rdg+5dgt) 0-20.00mΩ : ±(4%rdg+4dgt) 0-200.0mΩ : ±(4%rdg+4dgt) 0-2.000Ω : ±(3%rdg+4dgt) 0-20.00Ω : ±(2%rdg+4dgt) 0-200.0Ω : ±(2%rdg+4dgt) Test current (dc) 2.000mΩ to 200.0mΩ :... | Milli-Ohm meter/Micro-Ohm meters |
|
|
LUT0188B-DIGITAL HANDHELD MICRO-OHM METER-2014-1 YEAR WARRANTY | FEATURES* 4 terminal devices for accurate measurement of very low resistance.* Ideal for measuring the resistance of components precisely.* Ideal for testing protective conductors, lightning conductors and welded points.* Maximum test current is 10A ( 60000uΩ range only ).* Have two working mode , Resistive and Inductive mode, Normal is resistive mode.* Good / Fail set-function for input quality control.* Built-in in buzzer sound (GOOD STATUS) to assist the Q.C. judgment.* Especial "CALCULATE" function to measure cable / wire length. | Milli-Ohm meter/Micro-Ohm meters |
|
|
CAX0024B-CHAUVIN ARNOUX 6292 200A ADVANCED MICRO-OHM METER (ORIGIN:FRANCE)
|
Advantages ● Resolution: 0.1 μΩ ● Test current adjustable up to 200 A ● Automatic mode: 50 A, 100 A, 150 A and 200 A ● Unlimited test duration up to 100 A ●Safe measurements: Both Sides Grounded (BSG mode) ● Internal cooling system ● Storage of up to 8,000 measurements ● Site-proof casing for difficult environments Description The C.A 6292 is supplied in a site-proof casing with clearly-identified connection terminals to limit the risk of errors while also allowing quick connection of your measurement leads. The measurement results are displayed instantaneously on the LCD screen, which is backlit for easy reading. The C.A 6292 can be configured using the rotary knob on the instrument or via a PC with the USB link. The C.A 6292 can be used to measure in total safety for both people and equipment. The BSG method allows you to maintain the earthing on both sides of the object tested in order to remove any risk due to electromagnetic induction phenomena. In this mode, the optional MR 6292 clamp can be used for current measurements up to 50 ADC. The C.A 6292 can store in memory up to 8,000 measurement results. Accurate measurements According... | Milli-Ohm meter/Micro-Ohm meters |
|
